The Model

Poche Diagrams

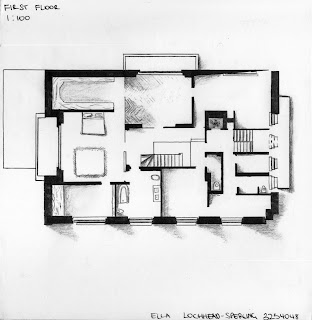

These poche diagrams represent each major level in detail.  The use of shadow rendering has exaggerated the contained spaces which are connected through many flights of stairs to all the split levels.  The site and access points are important to document as the create a more thourough understanding of how the house is used in relation to movement patterns and flow.  Similarly interior materials such as feature marble staircases and wooden finishes contribute to making these diagrams more 'readable' to an untrained eye.  Furniture is only represented when it is an integral feature or semi-permanent fixture.



Parti Diagrams

Villa Muller - Exterior

Villa Muller - Interior

Project ONE - Artifice

This project aims to study the architectonic elements and formal system of modern and contemporary architecture that date from the early twentieth century. Abstract, formal, and geometrical relations, as materialised in architectonics, will be experienced and understood through diagrams, architectural drawings and sectional models. The purpose of restriction is to allow students to concentrate on the study and understanding of the relatively autonomous nature of architecture.
Xing Ruan - Lecture Notes
